FLOOR ANCHORS · Floor Boards & Hinge Panel Locks

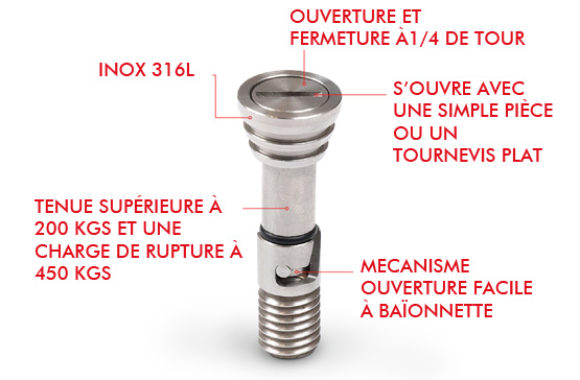

  • DURABILITY

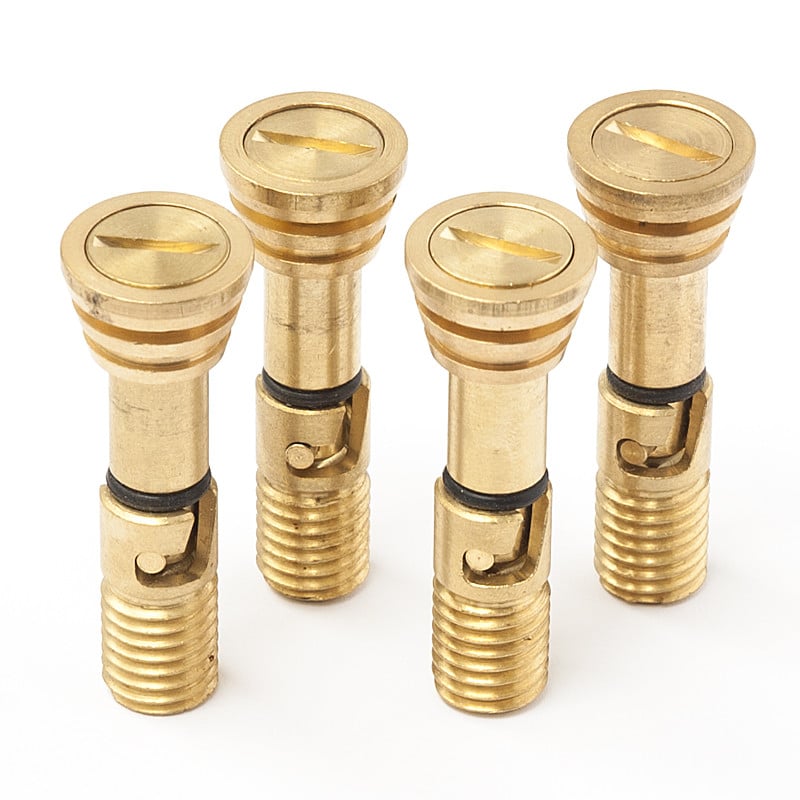

    Made of 316L Stainless Steel and Brass, Floor Anchors will not corrode, discolor with age, or damage the wood surface.
  • SAFETY

    Floor anchors safely hold 500 lbs. per unit – 1000 lb. breaking load. All components permanently attached – no loose pieces to drop in the bilge.
  • EASY

    Opening mechanism is a simple bayonet style with 1/4 turn lock and release that will not loosen with age. Can be opened or closed with either a coin or flat head screwdriver.

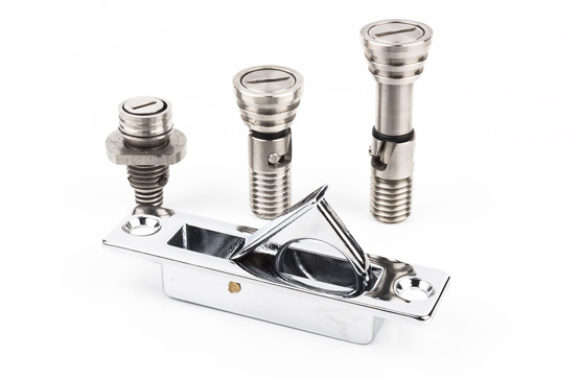

Gamme des Floor Anchors, vis de fixation de plancher

FLOOR ANCHORS

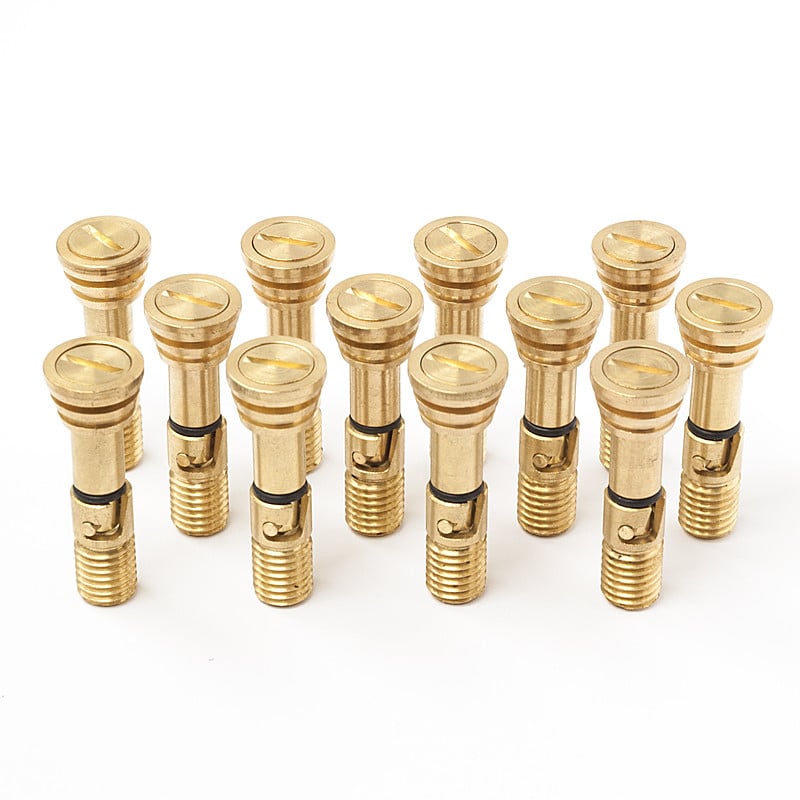

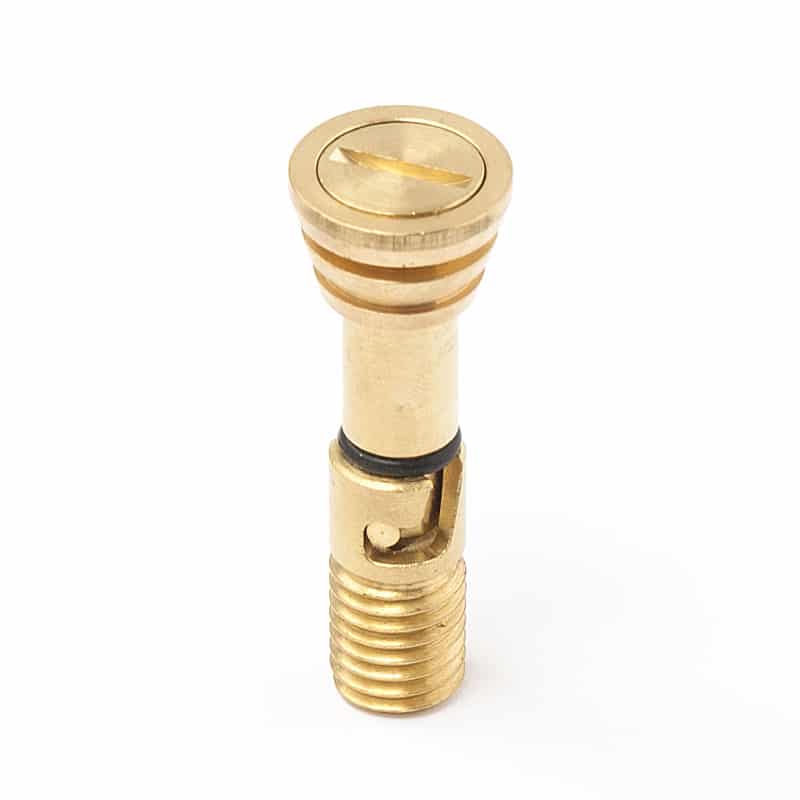

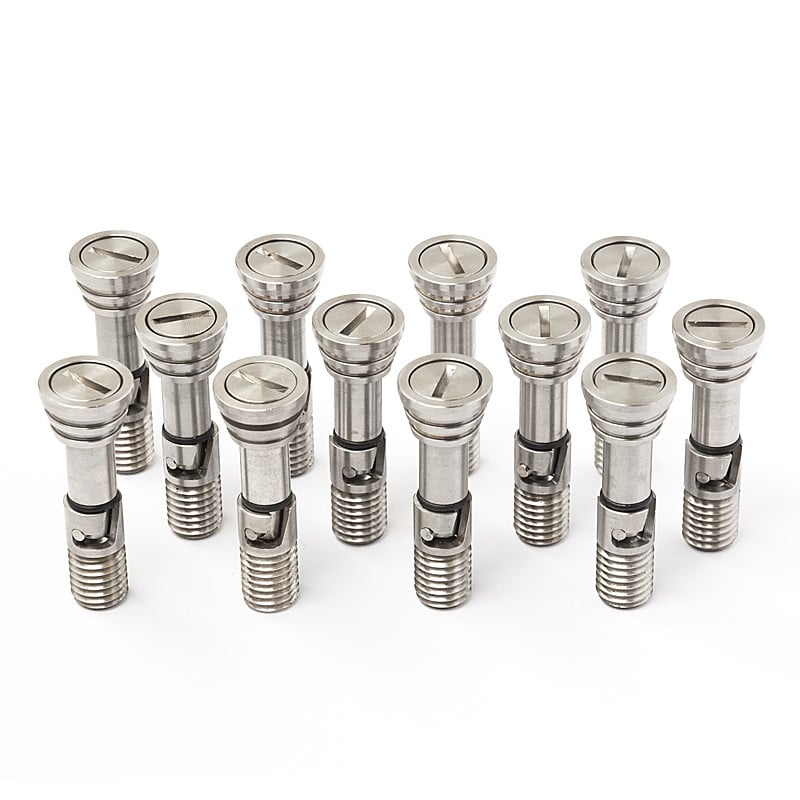

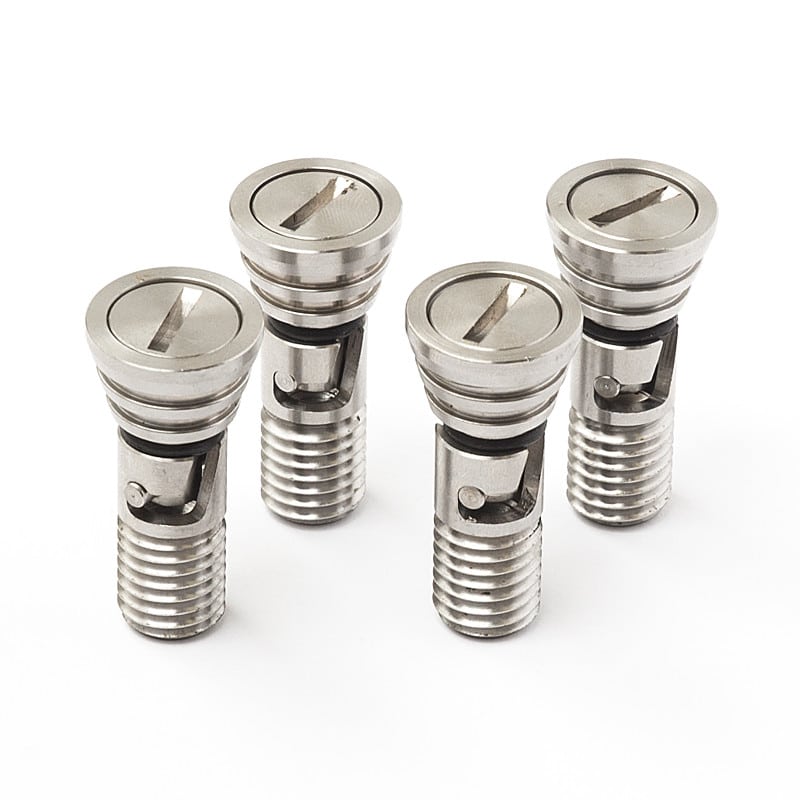

Floor Anchors are designed and engineered to secure floorboards or lock hinged panels. Made of 316L stainless steel. Will not corrode, discolor with age or damage the wood surface. Available for 1/2" to 1-1/4" (12 - 32mm) thick floorboards.

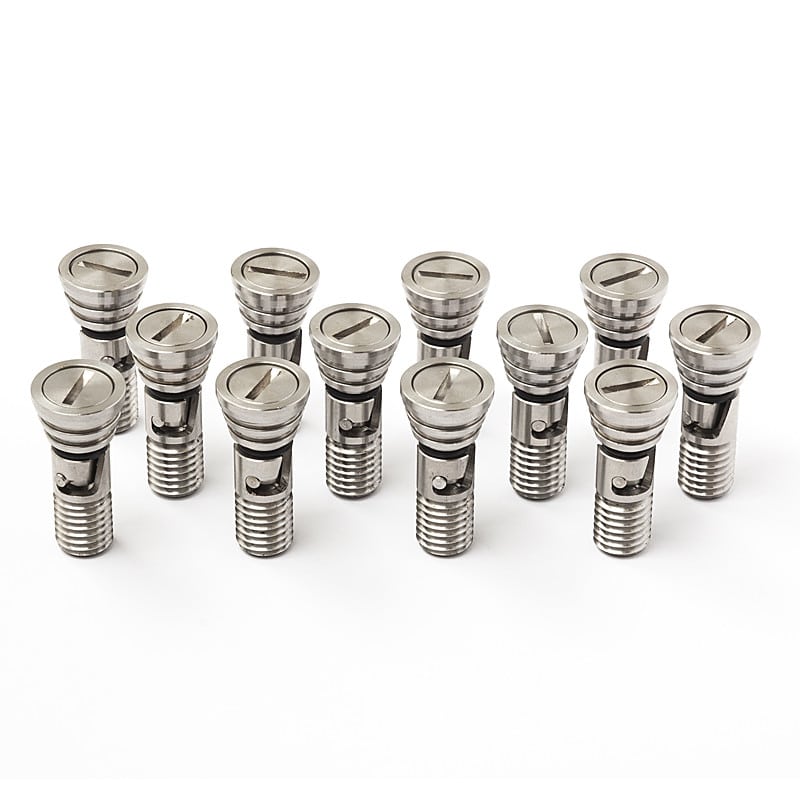

FLOOR BOARDS

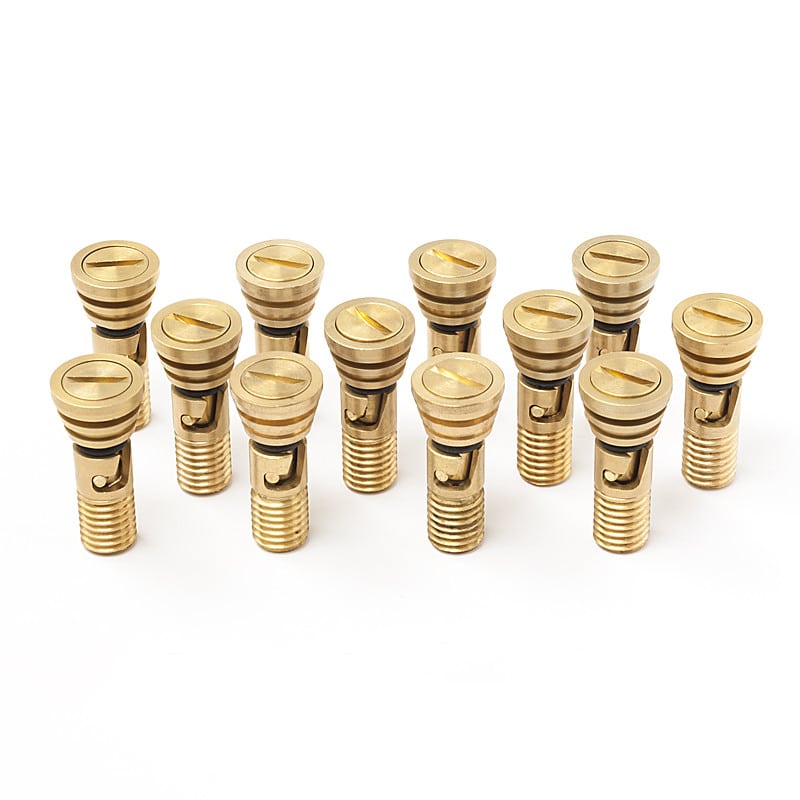

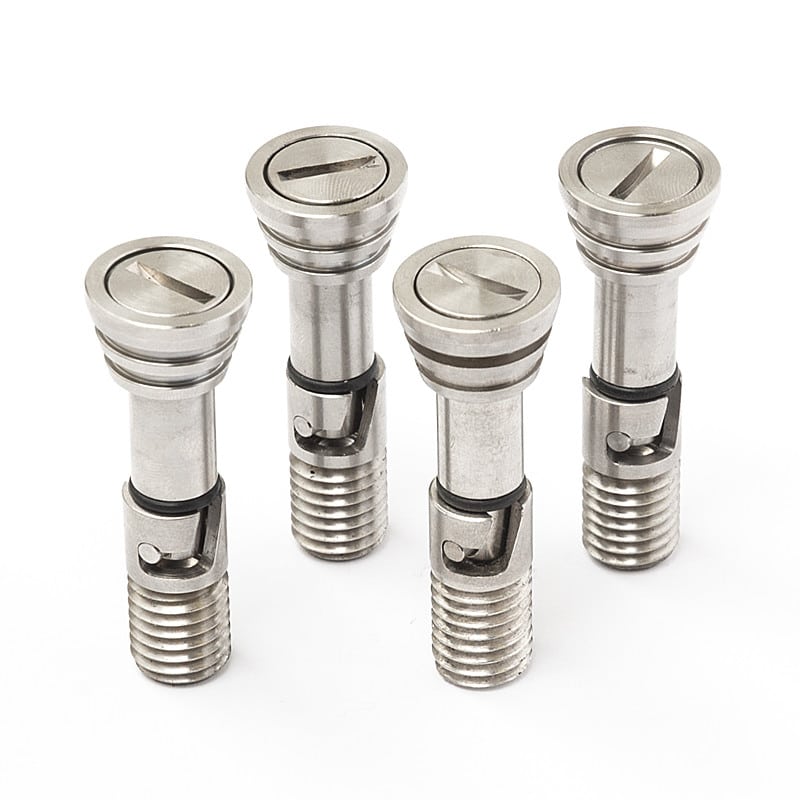

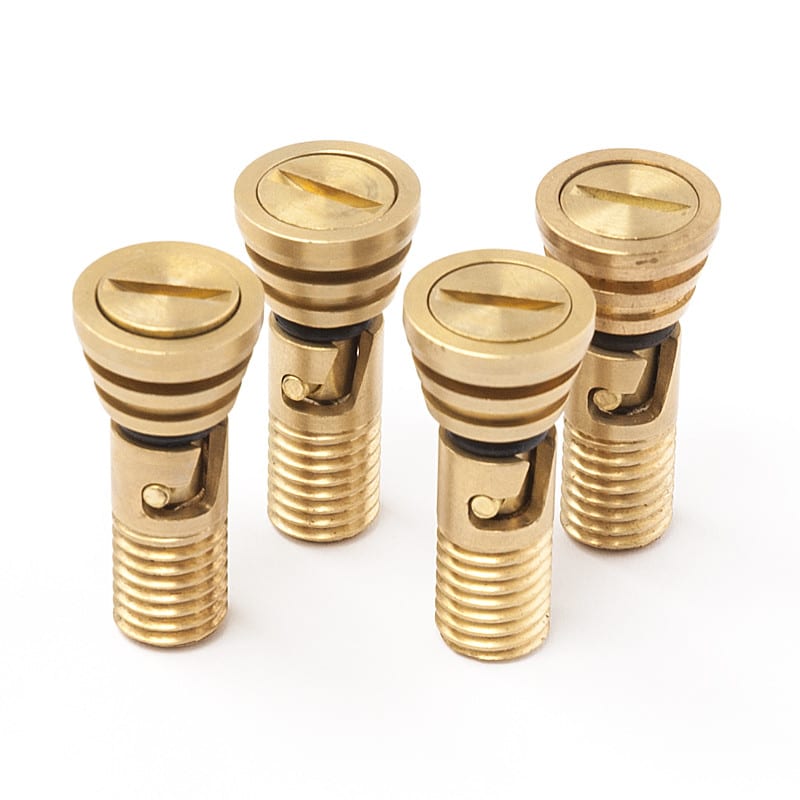

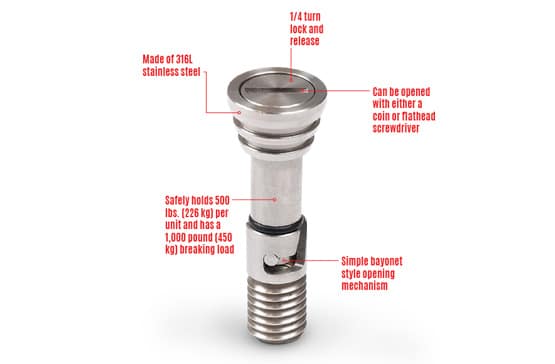

Floor Anchors are available in 316L stainless steel, it will not corrode, discolor with age or damage the wood surface. PYI Floor Anchors meet ISAF requirements for offshore boats (category 2.03) and can safely hold 500 lbs. (226 kg.) per unit. The simple bayonet style opening mechanism, with 1/4 turn lock and release, will not loosen with age. Being that all pieces are self-contained, Floor Anchors can be continuously opened / closed without the fear of losing pieces. Suitable for 0.5" to 1.25" (12mm - 32mm) thick floorboards.
oem-floor-anchor-details

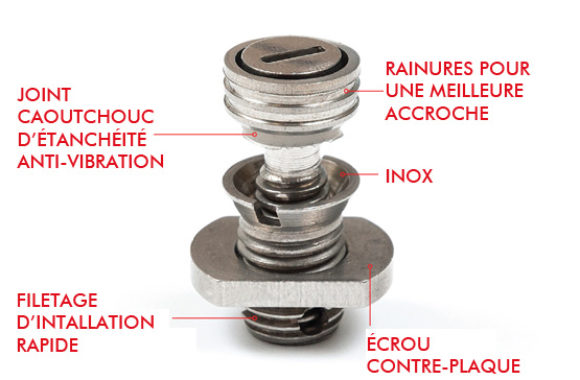

"OEM" FLOOR BOARDS

"OEM" Floor Anchors are designed to allow a 3/8" (9mm) to 3/4" (19mm) floor panel to be attached and detached repeatedly. PYI "OEM" Floor Anchors are a simplified form of PYI's successful Floor Anchors. Their simple design and installation allows a production boat builder to implement this type of fastener in a manufacturing environment. All components are made of 304 stainless steel. Tous les composants sont en acier inoxydable 304.

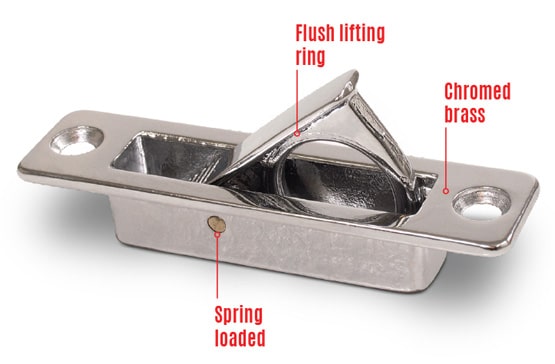

floor-latch-details

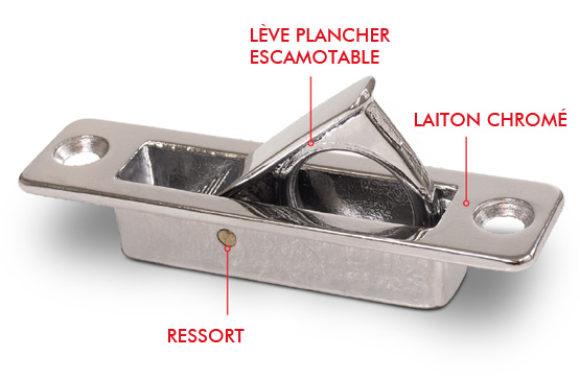

LIFTING RING

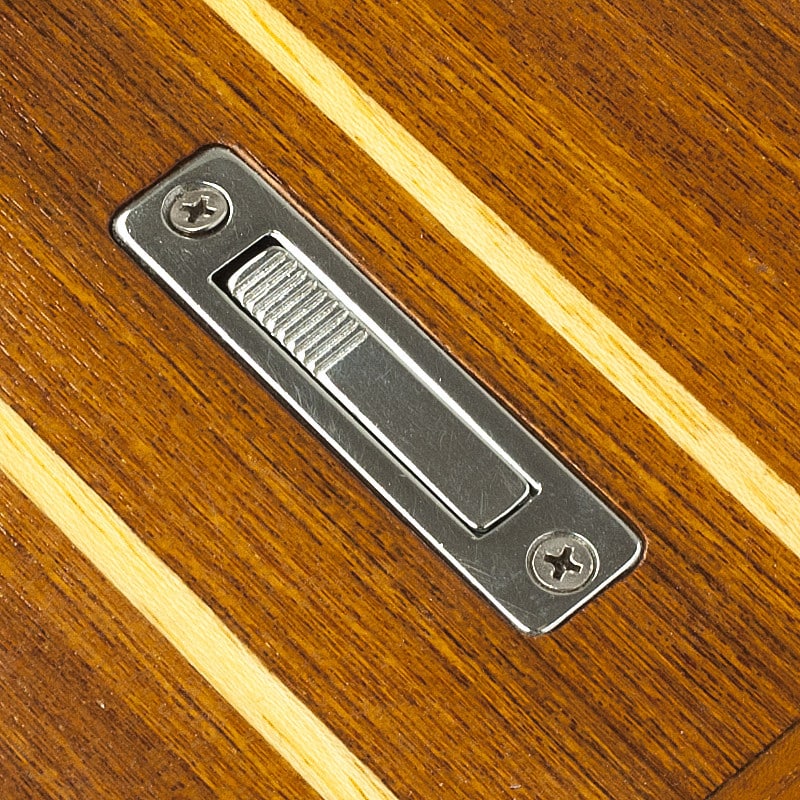

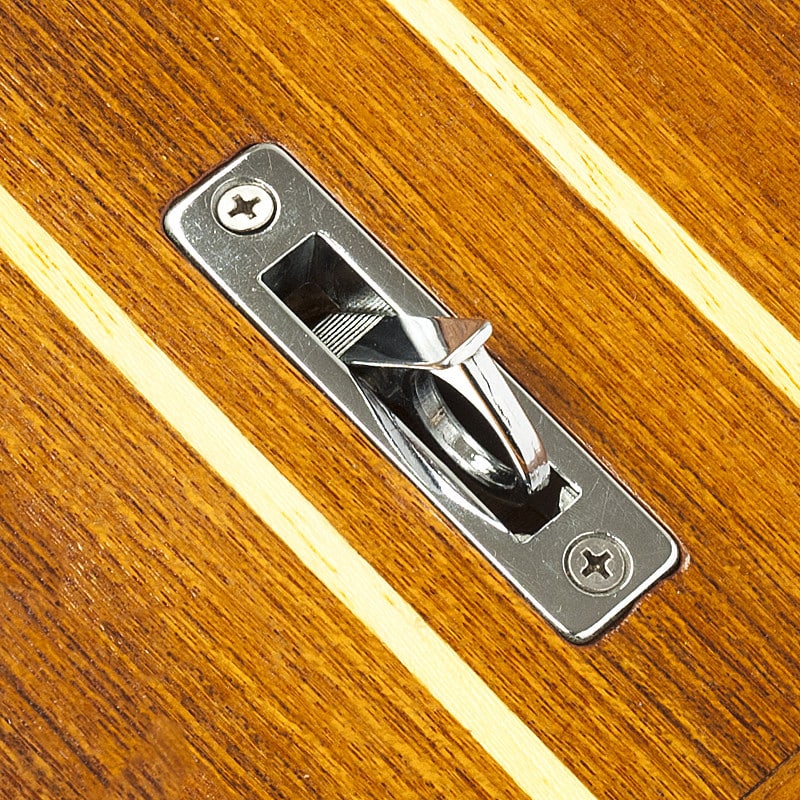

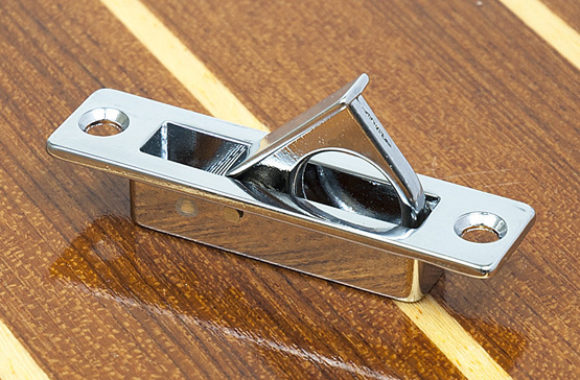

The PYI Lifting Ring works as a flush mounted device used to easily remove floorboard or panels. The Lifting Ring is made from marine grade chromed brass, and has spring loaded action that allows it to retract flush with the panel or board when not in use.

INSTALLATION KIT

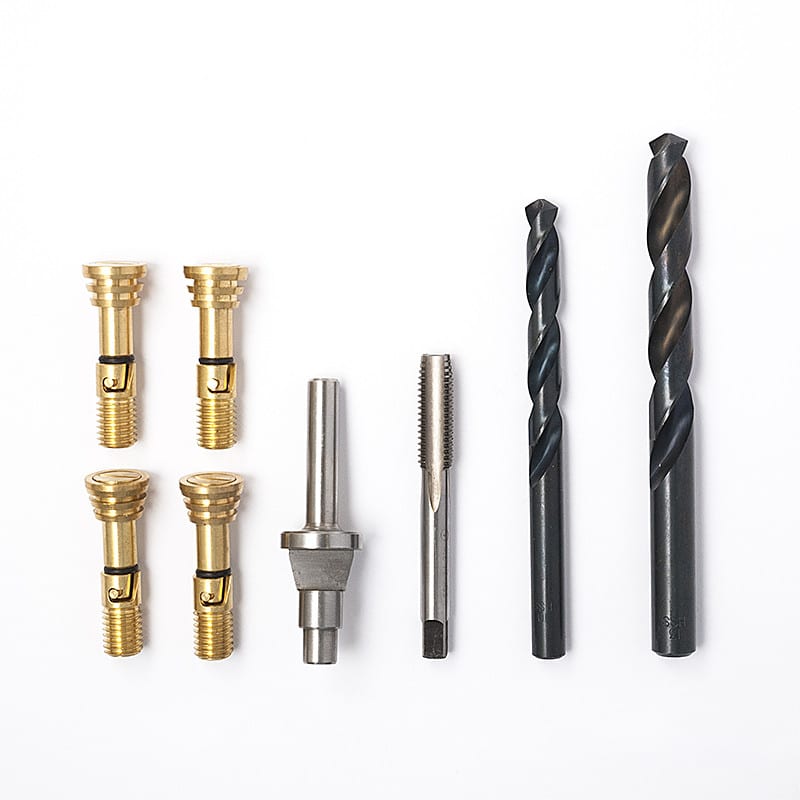

Need the tools to get your Floor Anchors installed? Pick up the Floor Anchor Installation Kit. This kit includes a custom countersink “t” cutter, all drill bits and taps required.

1/2" Panel (12 mm)

With 1/2" (12mm) panels the receiver will sit flush. A minimum of 1" (25mm) is needed for the sole.

3/4" Panel (19 mm)

With 3/4" (19mm) panels you will have a small portion of the receiver above the sole. A minimum of 3/4" (19mm) is needed for the sole.

7/8" Panel (22 mm)

With 7/8" (22mm) panels you will have more of the receiver sitting below the sole, thus the sole will require counter boring. A minimum of 1-1/8" (29mm) is needed for the sole.

1" Panel (25 mm)

With 1" (25mm) panels teh receiver will sit flush. A minimum of 1" (25mm) is needed for the sole.

1-1/4" Panel (32 mm)

With 1-1/4" (32mm) panels you will have a small portion of the receiver above the sole. A minimum of 3/4" (19mm) is needed for the sole.

FLOOR ANCHORS

Installation Instruction
