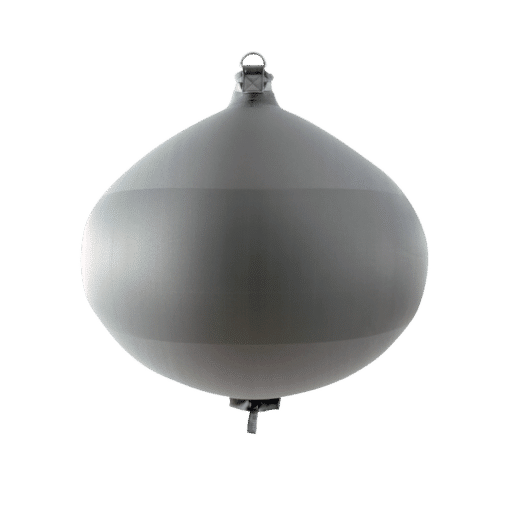

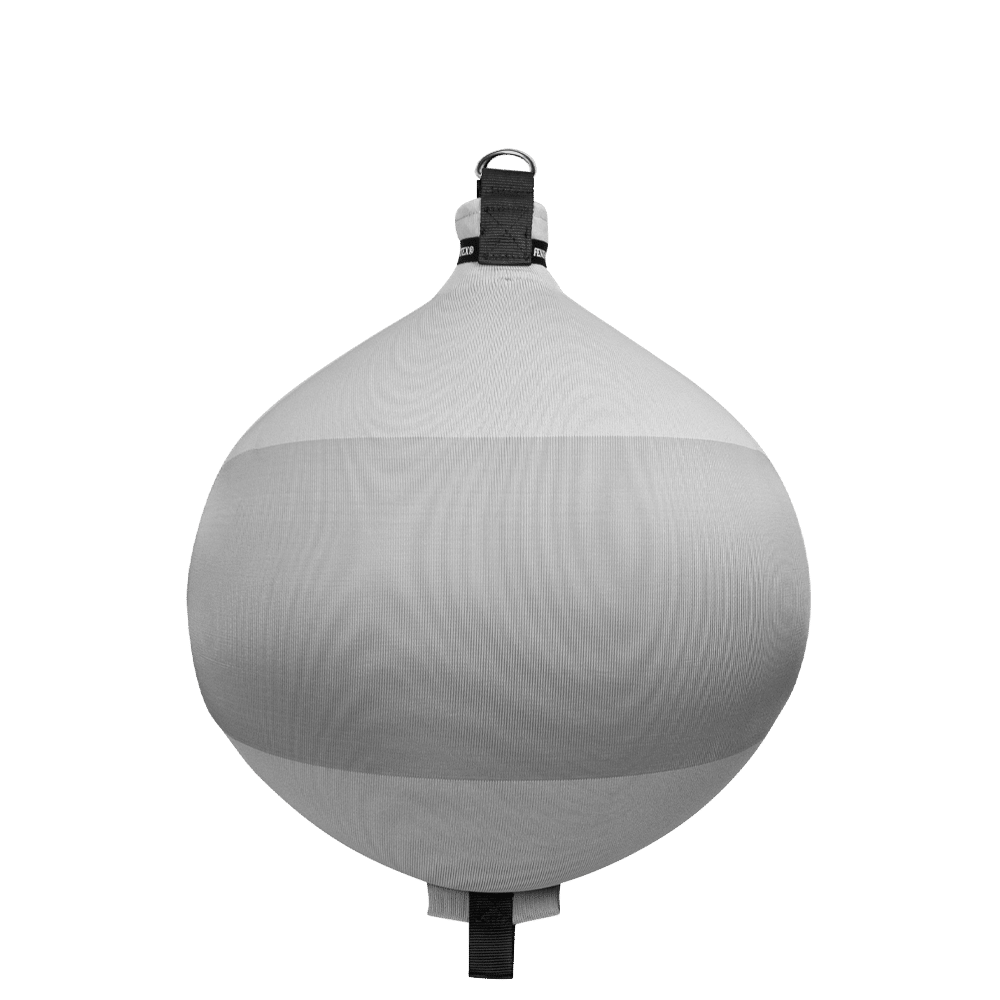

Spherical Fenders

From 217.19

Fits 62′ to 328′ vessels (cf Selector Guide Tab below)

  • The lightest fender in the world
  • Can be deflated and rolled for storage
  • Built to withstand an immense amount of pressure
  • Automatically adapts to temperature swings
Available only in UK with 10 – 12 week lead time
SKU: fe-s-fender Category:

Description

  • Highly durable design
  • Technical textile offers sleek modern design
  • Easy to handle and practical
  • Ultralightweight
  • Easily storable
  • Quickly inflatable and deflatable

The spherical fender is often used as a hand held fender during maneuvers due to its width, but is also used as a standard fender on larger vessels. The Fendertex® spherical textile fender offers the highest performance protection. They are ultralightweight, easy to handle and can be deflated and folded to minimize storage space.

All Fendertex® textile fenders are dyed en masse and designed using a patented salt resistant material that leaves no trace or scratch on the hull.

Textile Details:

  • Outer shell made of one piece knitted engineered textile
  • 100% polyester, yarns manufactured exclusively for Fendertex®
  • Knitted textile covers the tapered extremities
  • Material knitted as a single sleeve

Inflatable Bladder Details:

  • Proprietary Polyurethane manufactured for Fendertex®
  • Durable with high elasticity
  • Designed for the marine environment
  • High frequency welding used on the seams
  • Uses a secure, “fast-empty” valve

Attachment:

  • Suspension made with dual 100% polyester straps
  • Stainless steel D-rings at the top
  • Polyester strap at the bottom

Technical Specifications

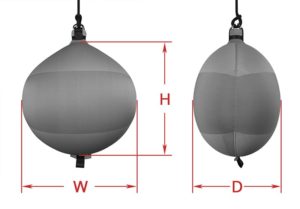

Cylindrical Fenders Dimensions

Spherical Fender Part # Dimensions Weight Compression Strength
S60 Height: 21.65″ (550 mm)
Width: 20.47″ (520 mm)
Depth: 16.14″ (410mm)
2.64 lbs (1.2 kg) 13,227 lbs (6,000 kg)
S70 Height: 25.60″ (650 mm)
Width: 24.41″ (620 mm)
Depth: 19.69″ (500mm)
3.31 lbs (1.5 kg) 15,432 lbs (7,000 kg)
S80 Height: 29.13″ (740 mm)
Width: 26.38″ (670 mm)
Depth: 21.65″ (550mm)
4.2 lbs (1.9 kg) 17,637 lbs (8,000 kg)
S100 Height: 33.86″ (860 mm)
Width: 35.43″ (900 mm)
Depth: 27.56″ (700mm)
5.73 lbs (2.6 kg) 22,046 lbs (10,000 kg)
S120 Height: 38.58″ (980 mm)
Width: 48.03″ (1,220 mm)
Depth: 33.46″ (850mm)
7.28 lbs (3.3 kg) 26,455 lbs (12,000 kg)

Product Details

Fendertex Fender product details

Technical textile with low elasticity at the ends to compensate for the increase in air volume caused by high temperatures maintains a constant pressure of about 5.1 psi (350 mbh)

Long side ring

Highly elastic inner tube, water can be added to act as ballast for the fender

A technical textile made from polyester with high abrasion resistance. Does not absorb salt, thus avoiding micro scratches on the hull. Easy to clean with water or in a standard washing machine.

Retention strap to prevent deformation of the collar during compression

Inflatable suspension collar with a maximum capacity at 1.5 tons of vertical tension

Suspension strap sewn into a cross for added strength

316 stainless steel D-ring


Temperature Resistance

  • Polyester Cover
    284°F (140°C) static
    320°F (160°C) dynamic
  • Inner Tube
    293°F (145°C) static
    257°F (125°C) dynamic

UV Resistance

The yarn is dyed en masse for optimal UV resistance.

Selector Guide

Boat Length Cylindrical Fender symbol
Cylindrical Fender Part #
Spherical Fender symbol
Spherical Fender Part #
Number of Fenders Recommended
(For both sides of vessel)
Tubular Fender symbol
Tandem Fender Part #
23 – 30 feet
(7 – 9 meters)
C52 Fender symbol T52 *
30 – 43 feet
(9 – 13 meters)
C73 Fender symbol T73 *
43 – 52 feet
(13 – 16 meters)
C84 Fender symbol T84*
52 – 62 feet
(16 – 19 meters)
C104 S60 Fender symbol T104 *
62 – 98 feet
(19 – 30 meters)
C124 S70 Fender symbol T124 *
98-131 feet
(30 – 40 meters)
C145 S80 Fender symbol T145 *
131 – 180 feet
(40 – 55 meters)
C175 S100 Fender symbol
180 – 230 feet
(55 – 70 meters)
C207 S120 Fender symbol
230 – 328 feet
(70 – 100 meters)
C248 S120 Fender symbol

* Tandem fenders can be used in place of cylindrical fenders where indicated.

Downloads

Reviews

There are no reviews yet

Be the first to review “Spherical Fenders”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Ultra-Lightweight

Fendertex® Fenders are ultralightweight, making them easier to handle than typical PVC or other inflatable fenders. - Up to 95% lighter compared to PVC fenders - Up to 40% lighter than other inflatable fenders

Fendertex® Fenders are ultralightweight, making them easier to handle than typical PVC or other inflatable fenders

  • Up to 95% lighter compared to PVC fenders
  • Up to 40% lighter than other inflatable fenders

Space Saving

Standard fender storage versus Fendertex Fenders

Storage of traditional fenders is often an issue on vessels. Fendertex® Fenders are designed to minimize the use of storage space. Once deflated and rolled, a set of fenders can easily be placed into a locker.

  • 95% smaller when deflated compared to standard PVC fenders
  • 50% smaller when deflated than other inflatable fenders
  • Quickly inflates and deflates

Robust

  • Can withstand an immense amount of pressure
  • Automatically adapts to temperature swings
  • Holds shape after extended periods of pressure
  • Made with dyed yarn for UV resistance
