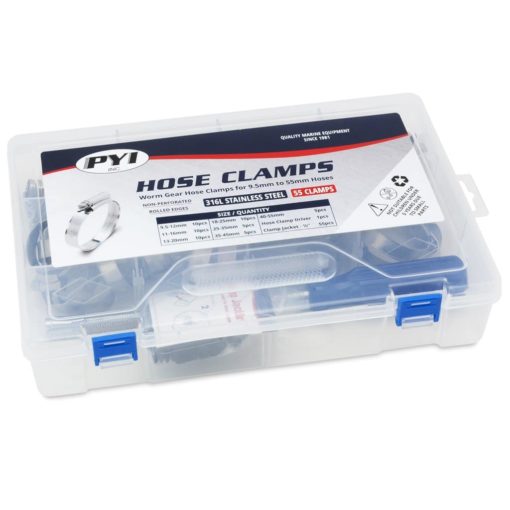

Worm Gear Hose Clamp Assortment Kit

232.07

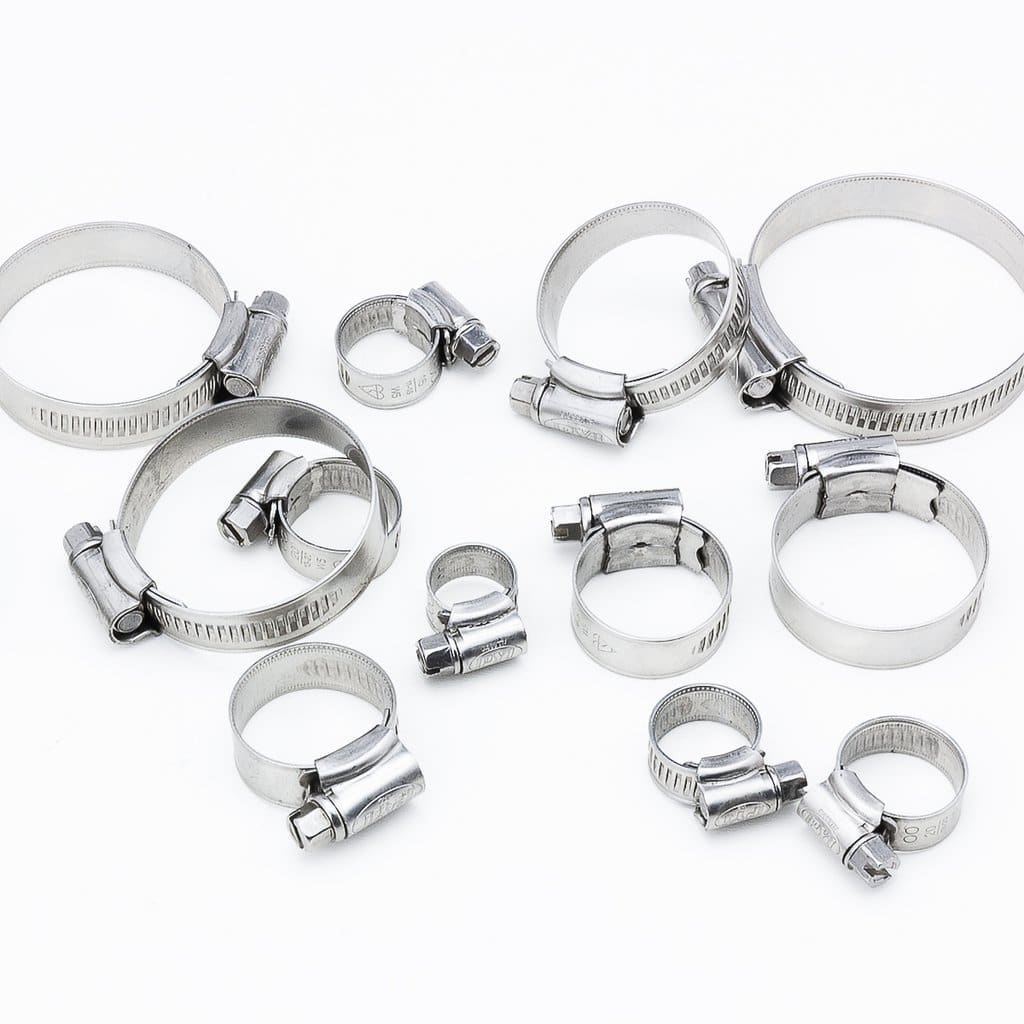

An assortment kit of PYI Worm Gear Hose Clamps containing 55 clamps.

Made entirely out of 316L stainless steel. Non-perforated, rolled edge and embossed band with a one-piece double locked screw cage.

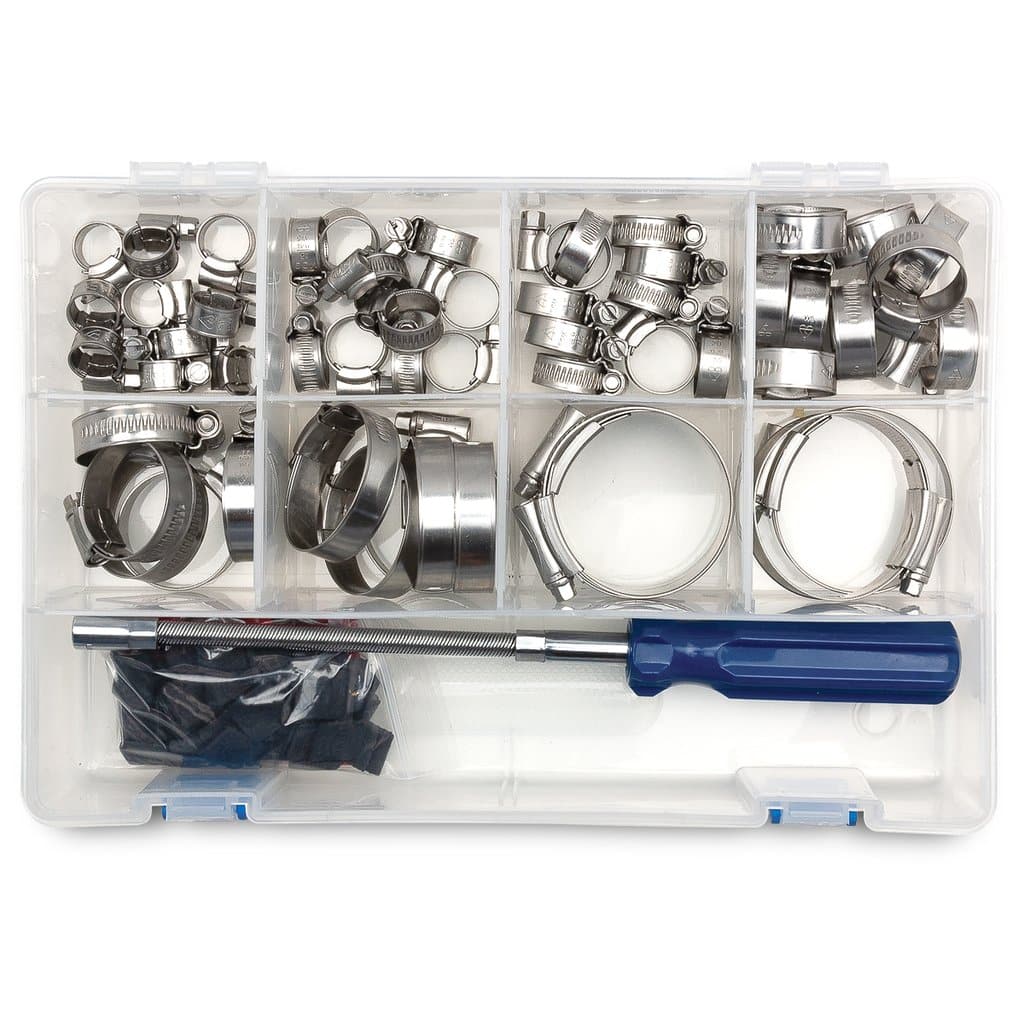

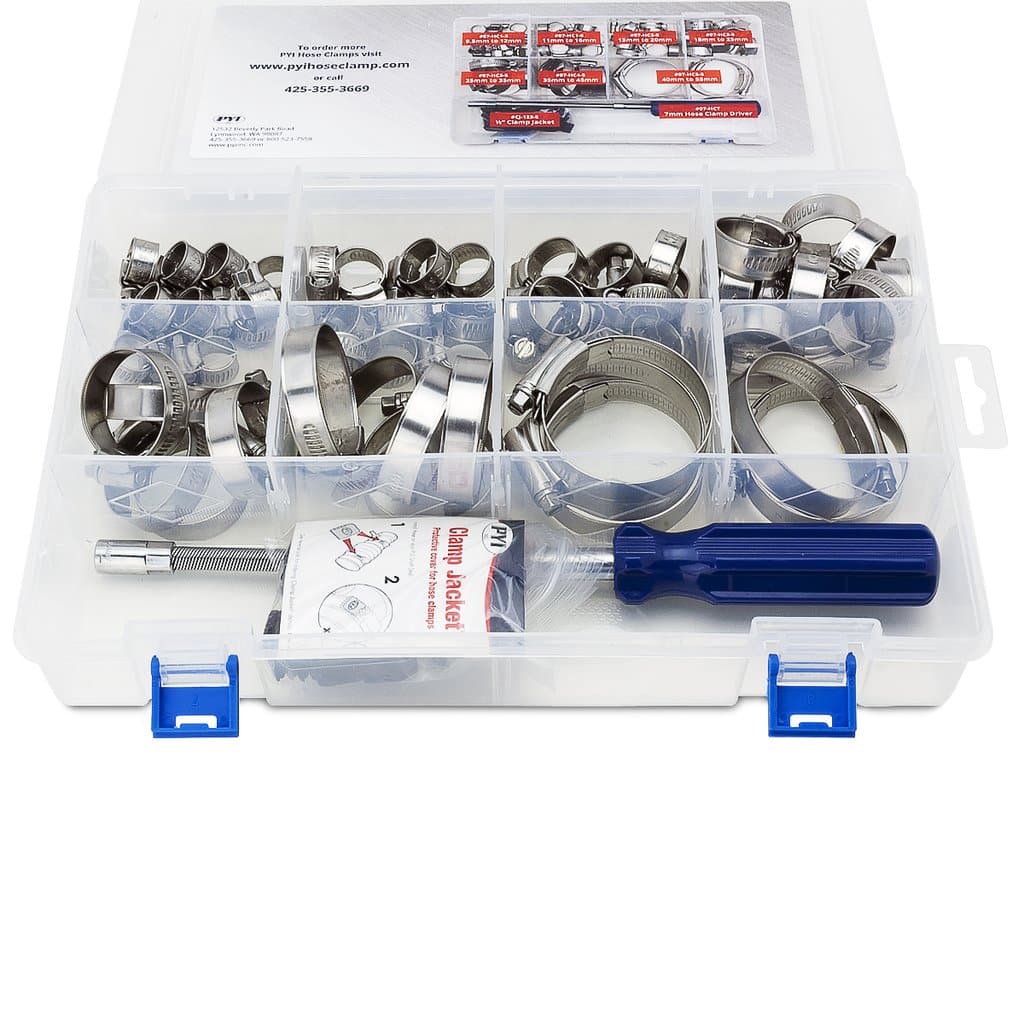

INCLUDES :

Clamp Size Quantity
9.5mm – 12mm 10pcs
11mm – 16mm 10pcs
13mm – 20mm 10pcs
18mm – 25mm 10pcs
25mm – 35mm 5pcs
35mm – 45mm 5pcs
40mm – 55mm 5pcs
Flexible Hose Clamp Driver 1pcs
Clamp Jacket – 12mm (1/2″) 55pcs
SKU: 07-HCK-IT Category:

Description

Safe For All Types of Hoses

By rolling the edges and removing perforations and ribs on the inside portion of the embossed hose band, the PYI Hose Clamp can be used on the softest hoses without worry of damage to the underlying hose surface during installation and throughout its use.



316L Stainless Steel Worm Gear Hose Clamp

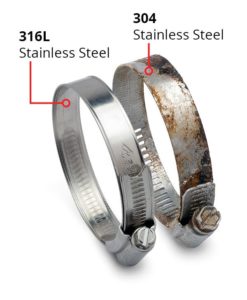

316L Stainless Steel

The PYI Hose Clamps are made entirely out of 316L stainless steel. 316/316L are the standard marine grades of stainless steel (SS) because of its superior resistance against corrosive chemicals found in salt water, de-icing salts, and corrosive industrial chemicals and acids. 316L SS utilizes a higher percentage of molybdenum, chromium and nickel than 304 SS. The addition of these elements, notably molybdenum, improves the resistance to corrosion and chloride pitting, provides a greater creep resistance, and a stronger stress-to-rupture and tensile strength at elevated temperatures.



Durable & Stable Clamping Force

The PYI Hose Clamp utilizes a durable riveting screw cage design that is machined from a single piece of 316L stainless steel which is capable of withstanding high tightening torque and internal hose pressure. Our Hose Clamps can be hand tightened up to 15.5 NM without the screw slipping or distorting the screw cage during its installation and use providing a reliably strong and stable clamping force and a long-lasting hold that is ideal for most demanding applications.

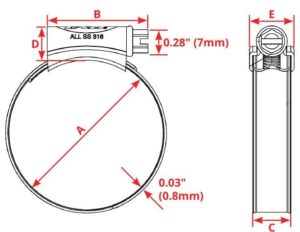

Dimension Chart

Worm Gear Hose Clamp - PYI Inc.

Part Number A B C D E Recommended Torque
07-HC1-2 0.37″ to 0.47″ (9.5 to 12mm) 0.75″ (19mm) 0.37″ (9.5mm) 0.39″ (10mm) 0.48″ (12.3) 3.4 N.m
07-HC1-6 0.43″ to 0.63″ (11 to 16mm) 0.75″ (19mm) 0.37″ (9.5mm) 0.39″ (10mm) 0.48″ (12.3) 3.4 N.m
07-HC2-0 0.50″ to 0.79″
(13mm to 20mm)
0.75″ (19mm) 0.37″ (9.5mm) 0.39″ (10.0mm) 0.48″ (12.3mm) 3.4 N.m
07-HC2-2 0.63″ to 0.87″ (16 to 22mm) 0.94″ (24mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 4.2 N.m
07-HC2-5 0.71″ to 0.98″ (18 to 25mm) 0.94″ (24mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 4.2 N.m
07-HC3-0 0.87″ to 1.18″
(22 to 30mm)
0.94″ (24mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.1 N.m
07-HC3-5 0.98″ to 1.38″ (25 to 35mm) 0.94″ (24mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.1 N.m
07-HC4-0 1.18″ to 1.57″ (30 to 40mm) 0.94″ (24mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.1 N.m
07-HC4-5 1.38″ to 1.78″
(35 to 45mm)
0.94″ (24mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.1 N.m
07-HC5-0 1.38″ to 1.97″ (35 to 50mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC5-5 1.57″ to 2.16″
(40 to 55mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC6-0 1.78″ to 2.36″
(45 to 60mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC7-0 2.17″ to 2.76″
(55 to 70mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC8-0 2.36″ to 3.15″
(60 to 80mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC9-0 2.76″ to 3.54″
(70 to 90mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC1-00 3.35″ to 4″
(85 to 100mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC1-20 3.54″ to 4.72″
(90 to 120mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC1-25 3.94″ to 4.92″ (100 to 125mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC1-40 4.72″ to 5.51″
(120 to 140mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC1-50 5.11″ to 5.91″
(130 to 150mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 6.8 N.m
07-HC1-60 5.12″ to 6.30″
(130 to 160mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC1-80 5.91″ to 7.10″
(150 to 180mm)
1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC2-00 6.70″ to 7.87″ (170 to 200mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC2-30 7.48″ to 9.05″ (190 to 230mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC2-50 8.66″ to 9.84″ (220 to 250mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC2-80 9.45″ to 11.02″ (240 to 280mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC3-00 10.63″ to 11.80″ (270 to 300mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC3-30 11.42″ to 13″ (290 to 330mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC3-60 12.60″ to 14.17″ (320 to 360mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
07-HC3-80 13.78″ to 14.96″ (350 to 380mm) 1.30″ (33mm) 0.47″ (12mm) 0.50″ (12.5mm) 0.58″ (14.65mm) 5.9 N.m
