Modular Top Plate

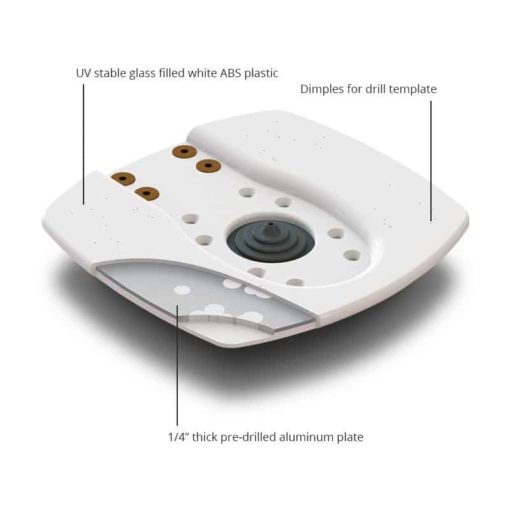

Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the “swiss cheese” look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics. ▼ Use the Selection Guide below ▼
Pick optional accessories, such as light bars, light bar tops, wedges, hinges and spreader kits :
STEP 3 Find Your Modular Mount Accessories
Price range: 22.93 € through 764.26 €
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Top Plate Fitting Guide
If you have selected a modular mount ending in “M1” (ex: PMA-57-M1)use the “For M1 Mounts” column below for the correct Top Plate. Mounts ending in “M2” (ex: PMA-DM2-M2) use “For M2 Mounts” column.
| BRAND & MODEL | Ref # | Ref # | LIGHT BAR |
| For M1 Mounts | For M2 Mounts | Option | |
| ACR | |||
| RCL50B, RCL75, RCL85, RCL95, RCL100, RCL1000 | ADABLANK | ADABLANK | LTB13 |
| RCL300 | CALL | CALL | CALL |
| B&G | |||
| HALO20(+), HALO24, 3G, 4G radar domes | ADAR1 | CALL | LTBR |
| COMNAV | |||
| Explorer V2/V3 | ADAF1 | ADAF1 | LTBS |
| FLIR | |||
| MD324, MD625, M324XP, M324L, M324S, M324CS, M625XP, M625L, M625S, M625CS, M612L, M617CS, M618CS, T200, T300, T400 | ADAF1 | ADAF1 | LTB13 |
| M132, M232 Series (Hiko) | ADAF2 | ADAF2 | LTB13 |
| M300C, M332, M364, M364C & M364C LR | ADAF3 | ADAF3 | LTBS |
| FURUNO | |||
| SC30, SC703, SC1303 | ADAR1 | ADAR1DMLTB | LTBR |
| DRS4DL, DRS4D, DRS2DNXT, DRS4DNXT | ADAR1 | CALL | LTBR |
| DRS6A-NXT | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| GARMIN | |||
| FANTOM18, GMR18(HD), GMR18x(HD) | ADAR1 | ADAR1DMLTB | LTBR |
| FANTOM24, GMR24(HD), GMR24x(HD) | ADAR1 | ADAR1DMLTB | LTBR |
| Fantom, 4′-6′ Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| GLOMEX | |||
| 20″-27″ Satdome | ADAS1 | ADAS2 | LTBS24 |
| Pandora | ADAS3 | ADAS3 | LTBS |
| HUMMINBIRD | |||
| HB2124 Chirp Radar | ADAR1 | ADAR1DMLTB | LTBR |
| RH44, RH45 4′ – 6′ Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| INTELLIAN | |||
| C700 | ADAC700M1 | ADAC700M2 | LTBR |
| i2 (FB150 in i2 Matching Dome) | ADAS1 | ADAS3 | LTBS |
| i3 (FB150 in i3 Matching Dome) | ADAS1 | ADAS1 | LTBS |
| i4, i4P (FB150 in i4 Matching Dome) | ADAS2 | ADAS2 | LTBS |
| i5, v45C | ADAS2 | ADAS2 | LTBS24 |
| i6, i6P, S6HD, FB500 | ADAS2 | ADAS2 | LTBS24 |
| FB250, Fleet One | CALL | CALL | LTBS |
| FB150 | ADAS4 | ADAS4 | LTBS |
| JRC | |||
| 15″ Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 24″ Radar Dome | ADAR2 | ADAR1DMLTB | LTBR |
| KODEN | |||
| 18″ – 25″ Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4′ – 6′ Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| KVH | |||
| M1DX, M1, TV1, LTE-1 | ADAS1 | ADAS3 | LTBS |
| M2, M3, M3DX, M3ST, V3, V3-IP, TV3 ,V3-HTS | ADAS1 | ADAS1 | LTBS |
| M5, TV5, FB250 (18”) | ADAS2 | ADAS2 | LTBS |
| M7, M7SK, HD7, UHD7 (24”), V7, TV6, FB500(26”), F55, V3-IP(24”) | ADAS2 | ADAS2 | LTBS24 |
| V7-IP ,V3-HTS (24”) 8.49”x8.49” bolt pattern | CALL | CALL | CALL |
| FB150(10.8”), FB250(14”), Fleet One, Fleet33 | ADAS4 | ADAS4 | LTBS |
| V30 | ADAV30 | ADAV30 | LTBS |
| KYMETA | ADAKYMETA2 | ADAKYMETA2 | |
| LOWRANCE | |||
| HALO20(+), Halo24, 3G, 4G Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| LORENZ | |||
| 12″-24″ Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4′-6′ Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| MARINCO | |||
| SPL12 | ADABLANK | ADABLANK | |
| OMNISENSE | |||
| Micro, Mini | ADABLANK | ADABLANK | LTB13 |
| OSCAR | |||
| Sentry | ADABLANK | ADABLANK | LTBS |
| RAYMARINE | |||
| RD418D, RD418HD, RD424D, RD424HD, Quantum, Quantum 2 | ADAR1 | ADAR1DMLTB | LTBR |
| RA1048(S)HD, RA3048(S)HD, Magnum 4’, Cyclone | ADAR1 | CALL | LTBOA |
| RA1072(S)HD, RA3072(S)HD, Magnum 6’ | ADAR1 | CALL | LTBOA6 |
| 33STV | ADAS1 | ADAS3 | LTBS |
| 37STV | ADAS1 | ADAS1 | LTBS |
| 45STV | ADAS2 | ADAS2 | LTBS |
| 60STV | ADAS2 | ADAS2 | LTBS24 |
| T200, T300, T400 | ADAF1 | ADAF1 | LTB13 or LTBS |
| SEA-TEL (COBHAM) | |||
| ST14, FX150 (16.5″) | ADAS2 | ADAS2 | LTBS24 |
| C18, FX250 (24″) | ADAS2 | ADAS2 | LTBS24 |
| SIMRAD | |||
| 3G, 4G Radar Dome, HALO20(+), HALO24 | ADAR1 | ADAR1DMLTB | LTBR |

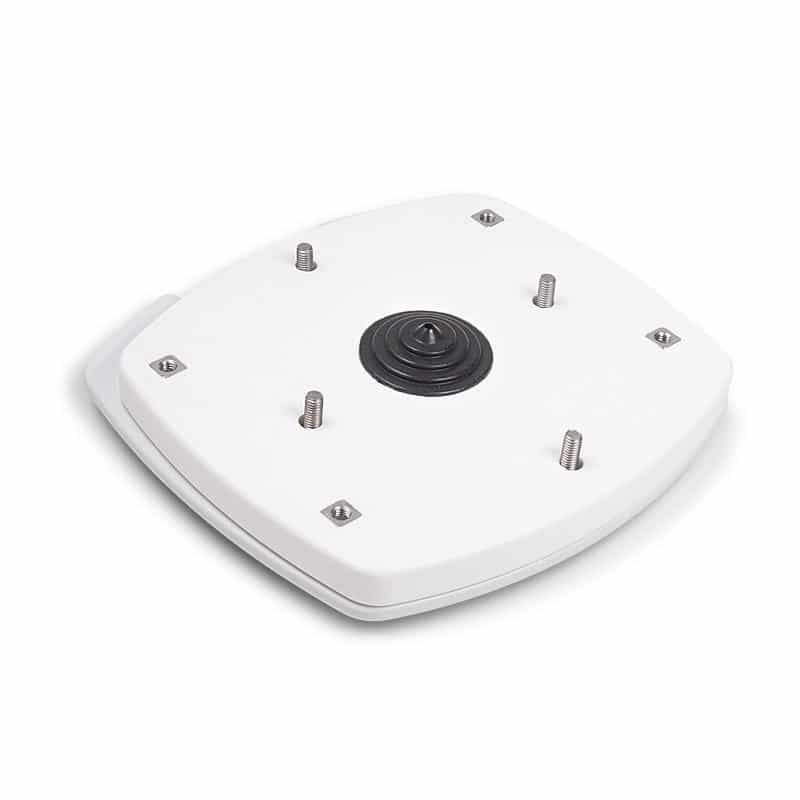

| 4′-6′ Halo Open Array Radar | ADAR1 + ADAHALO3 | CALL | LTBOA or LTBOA6 |
| 4′ – 6′ RB Series Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| SINOYX | |||
| Nightwave D1 | ADABLANK | ADABLANK | |
| SITEX | |||
| 18″ (T760/T921) Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 24″ Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 25″ Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4′-6′ Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| STARLINK | |||
| Flat High Performance | ADASTLKA or ADAR1DMLTB | ADAR1DMLTB | |
| GEN 2 | ADASTLK | ADASTLK | |
| GEN 3 | ADAG3 | ADAG3 | |
| MINI | ADAMINI | ADAMINI | |
| THRANE & THRANE | |||
| FB150, FB250, Fleet 33, 33+ | ADAS4 | ADAS4 | LTBS |
| Sailor FB500, Fleet 55+ | ADAS1 | ADAS3 | LTBS24 |
DIMENSIONS
| Seaview Part Number | Dimensions |
| ADAKYMETA2 | Download |

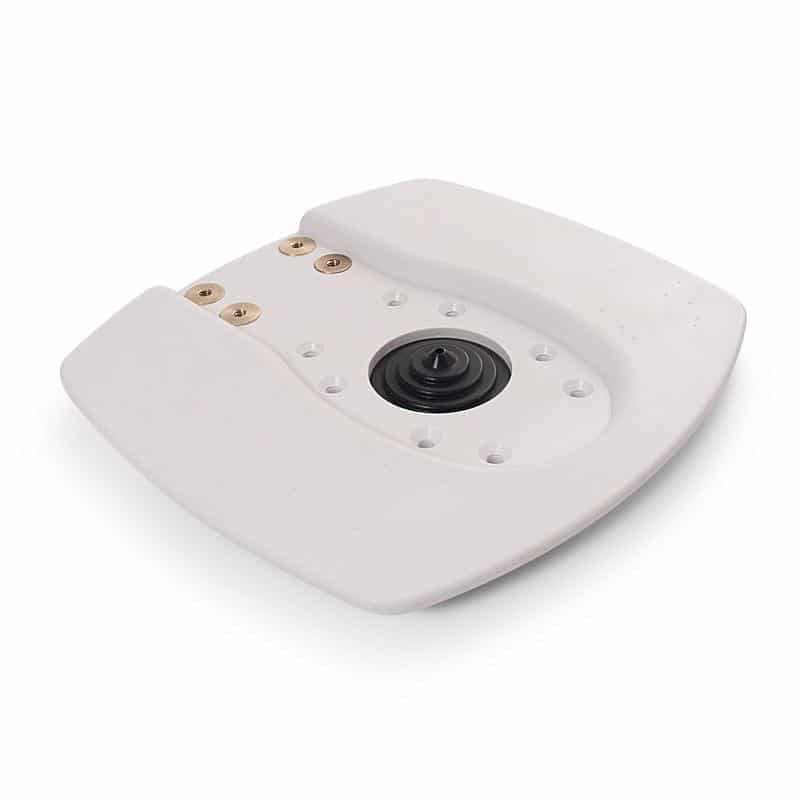

| ADAR1 | Download |
| ADAR1BLK | Download |
| ADAR1DMLTB | Download |

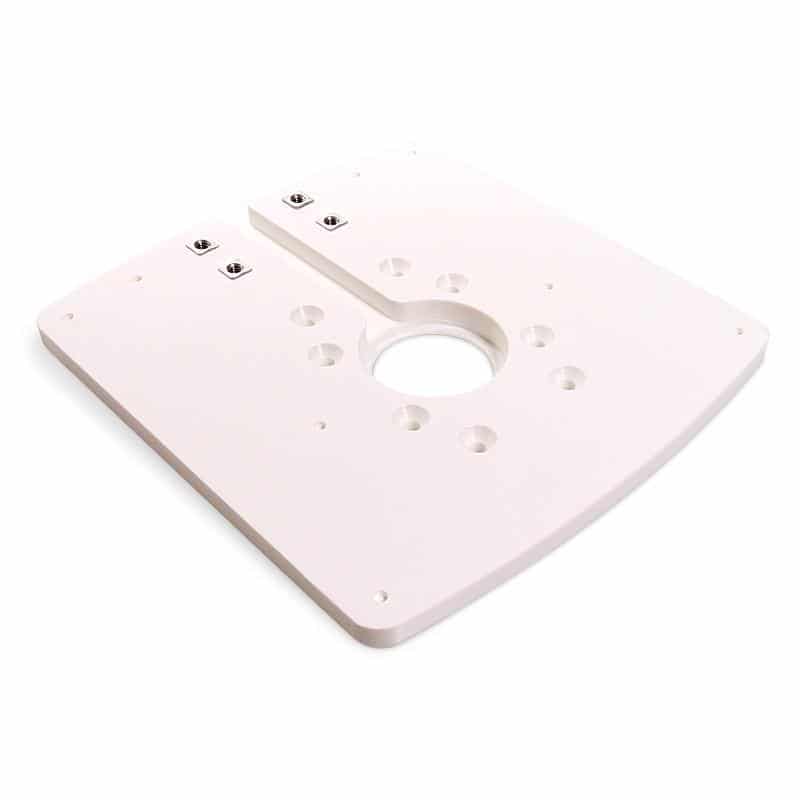

| ADAR2 | Download |

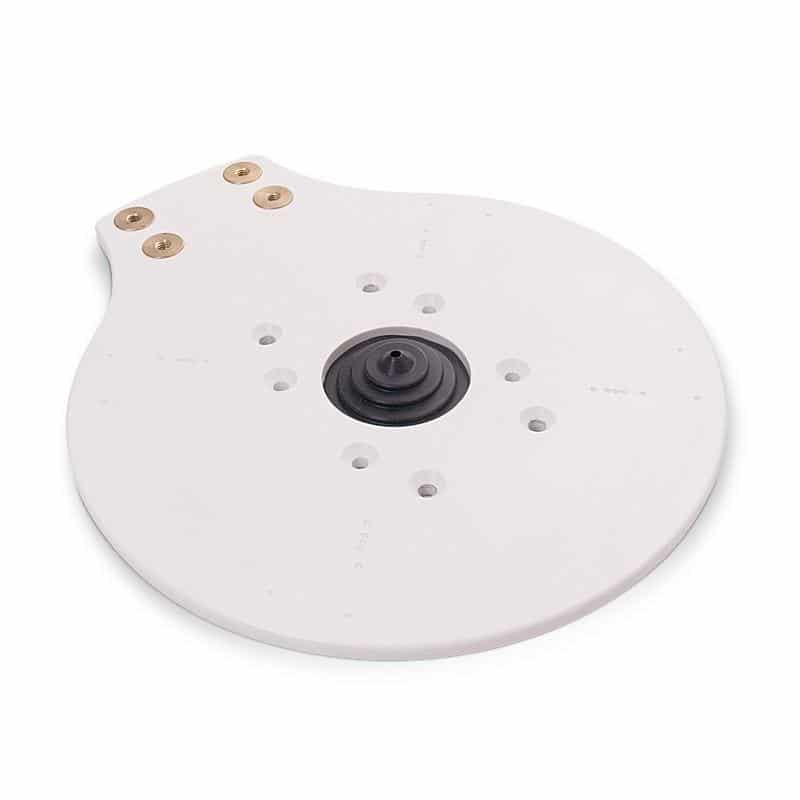

| ADAS1 | Download |
| ADAS1BLK | Download |
| ADAS1SR | Download |
| ADAS2V7 | Download |

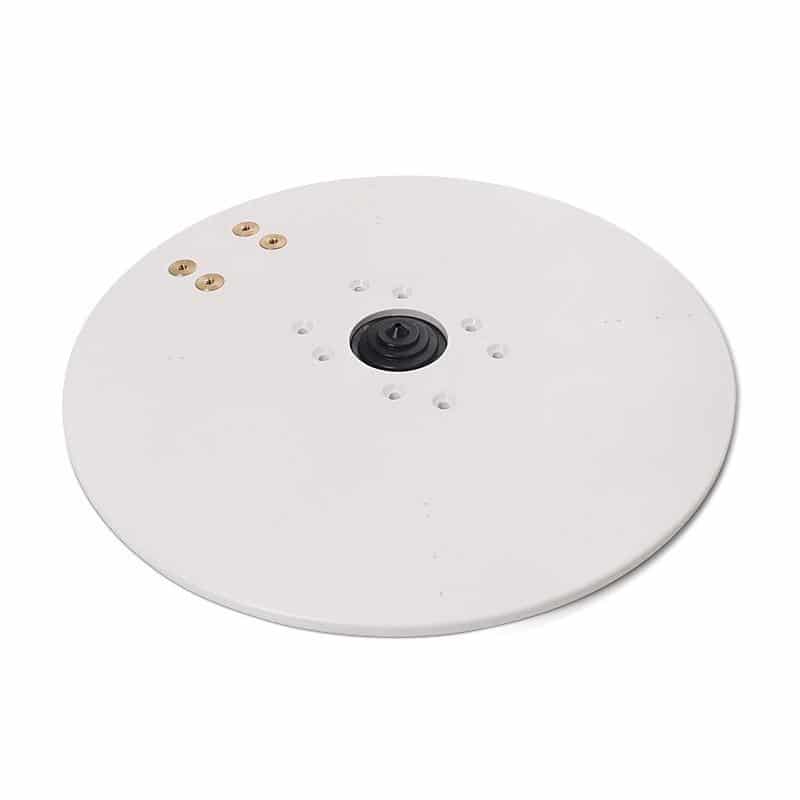

| ADAS2 | Download |
| ADAS2BLK | Download |
| ADAV30 | Download |

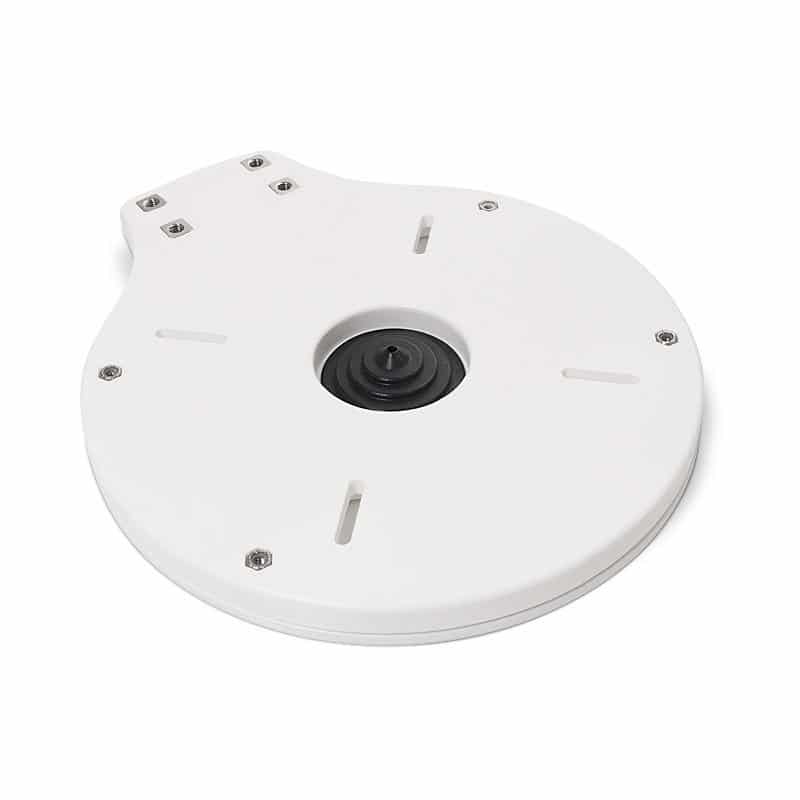

| ADAS3 | Download |

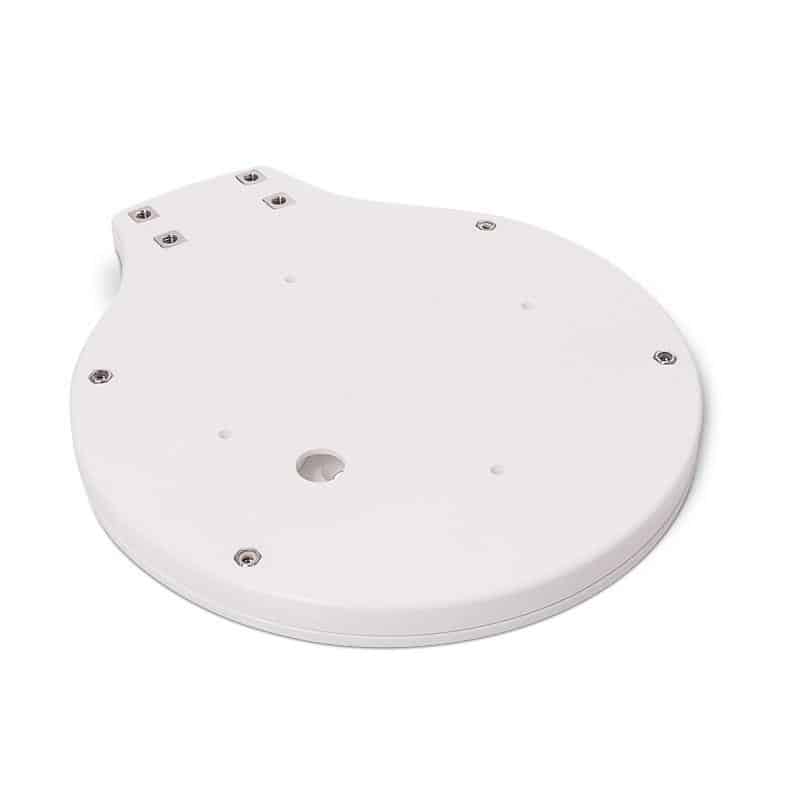

| ADAS4 | Download |

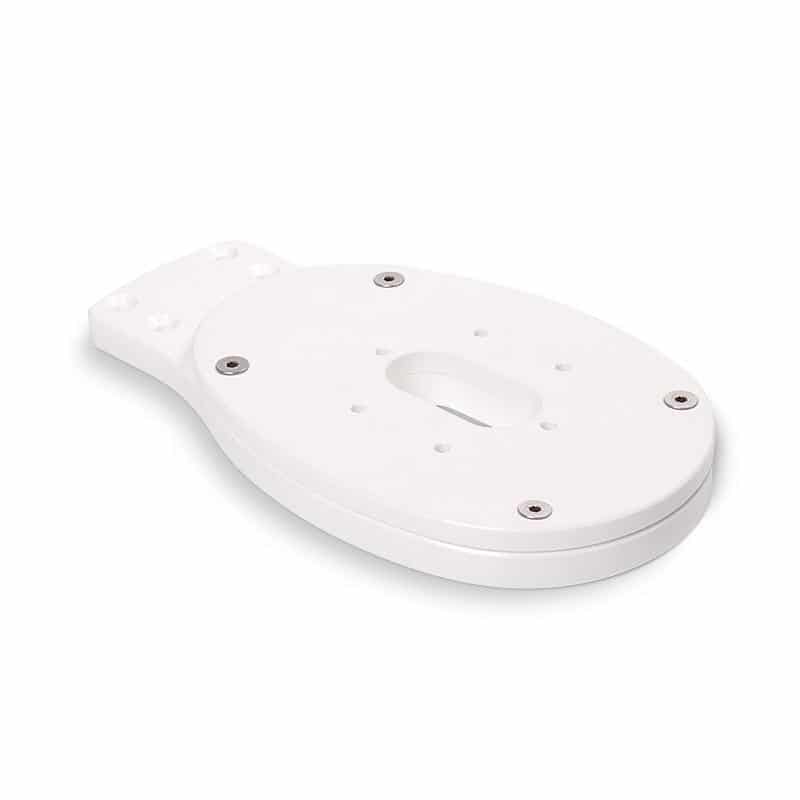

| ADAF1 | Download |

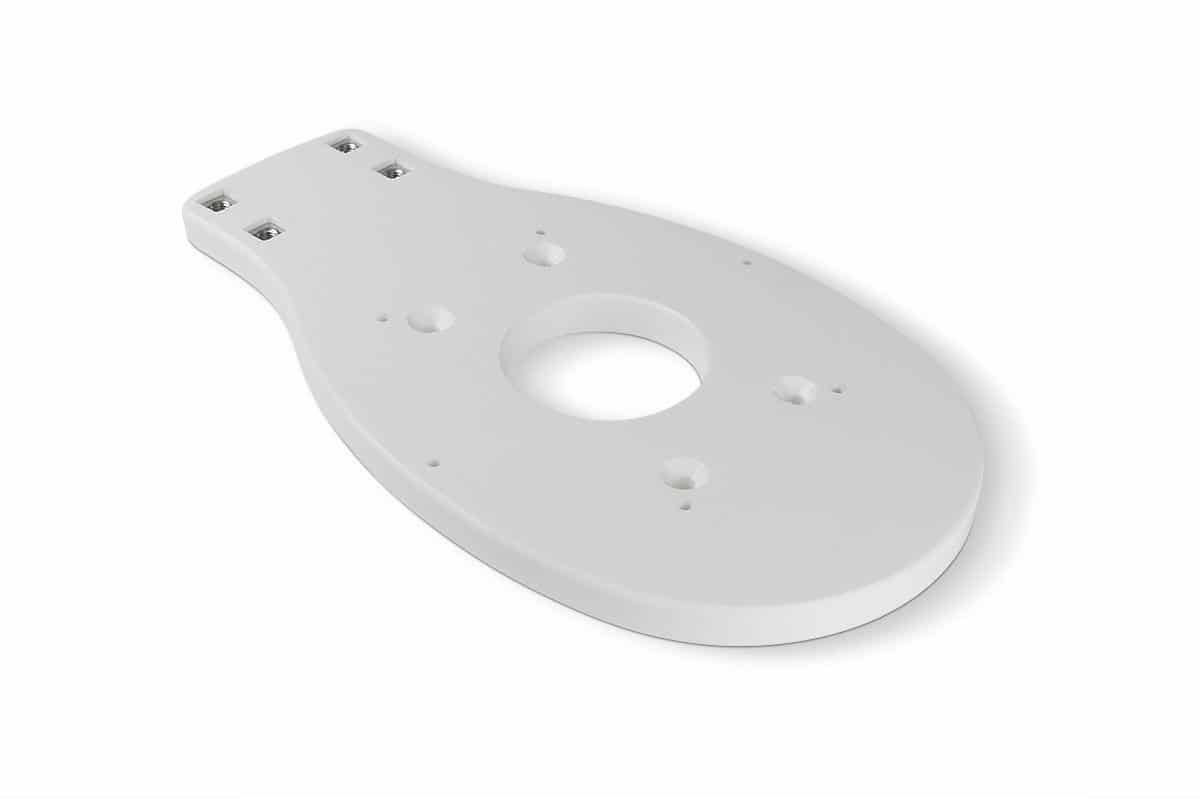

| ADAF2 | Download |
| ADAF3 | Download |

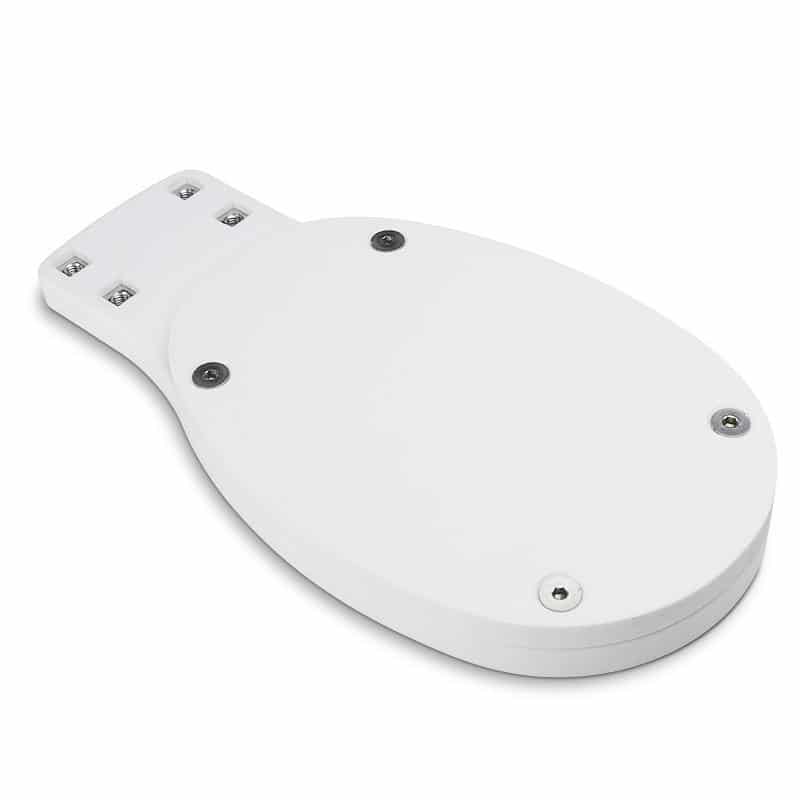

| ADABLANK / ADABLANKBLK | Download |
| ADASTLK | Download |
| ADASTLKA | Download |
