Bride d'étambot avec joint gonflable PSS

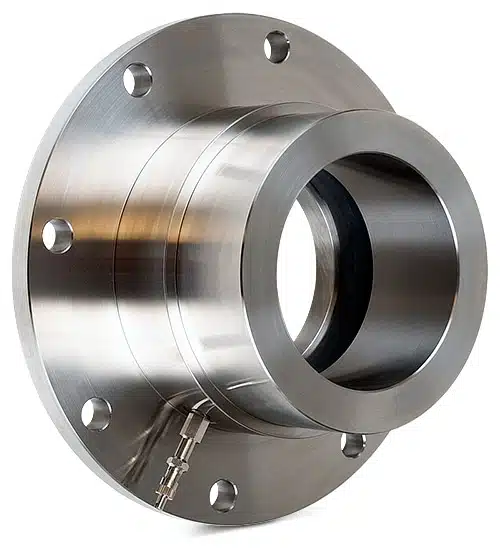

PSS Flange & Bladder System

Available in aluminium, steel or stainless steel.

A large number of commercial vessels are manufactured with a multi-bolt flange in lieu of a stern tube. Often, these flanges have a standard bolt pattern. In order to facilitate the installation of the PSS Shaft Seals on boats with these type of flanges, PYI manufactures an array of flanges which fit the "standard" bolt patterns and transform the flange into a stern tube ready to accept the PSS Shaft Seal. These adapters can be ordered as a "standard unit" or as an "inflatable bladder unit". The inflatable bladder option allows the operator to seal the stern tube, while the shaft is not rotating, in order to inspect or clean the seal. In addition, if the uncoupling of the shaft is needed, this operation can be done in the water as the shaft can be moved aft with bladder inflated with no water intrusion occurring. This inflatable bladder can also be used in case of an emergency.



Aluminium Treatment

Aluminum is easily corroded. PYI does not apply any treatment to the aluminum unless requested by the customer. Due to PYI's close proximity to the Boeing Factory, PYI can supply any kind of aluminum treatment requested by the customer. Please specify which aluminum treatment you require for a quote.

HOW DOES IT WORK ?

Joint Dégonflé, l'eau passe

Bladder Deflated

Bladder is deflated allowing water to flow through.
Joint gonflé, éctanchéité assurée

Bladder Inflated

Bladder is inflated closing off water flow.

Cross Section Of Flange & Bladder System

Air valve

Inflatable rubber bladder

Pre-drilled or Blank Flange

vue tranversale de la bride d'étambot PSS

PSS Shaft Seal
