Sail Pods

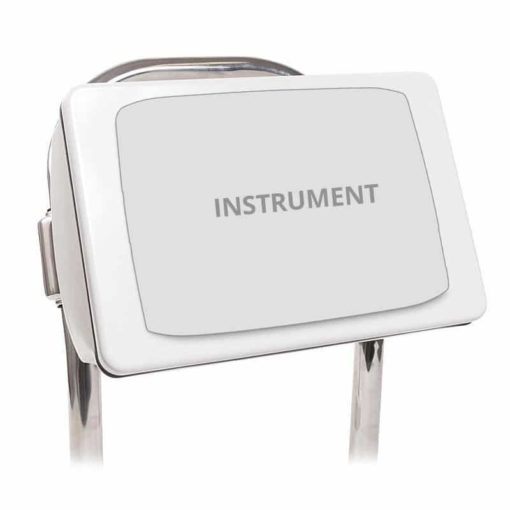

The Seaview Sail Pod, also known as SPOD is a instrument pod for sailboats and catamarans. Expanding on Seaviews modular mount concept, Seaview has developed a sailboat pod design with a similar concept. There are five different box sizes to fit almost any chart plotter or instrument on the market. Made from UV resistant white ABS plastic and sealed with a rubber gasket. Seaview has designed the SPOD so that the back of each box has a continuous radius that matches up with the stainless steel pod clamps. The result is precise viewing angle during installation for the customer. The pod fits the majority of steering pedestals from Jefa, Whitlock and Edson, and can be custom tailored for other systems.
Price range: 288.40 € through 524.89 €
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
Selection Guide
| BRAND & MODEL | ▼SPOD | DPOP | RAIL POD |
| Single instrument (125mm x 125mm or smaller) | – | – | SP1S |
| Three instruments (125mm x 125mm or smaller each) | SP5S | SP5P | SP5S1 |
| B&G | |||
| Triton2 | SP1S2 | – | SP1S2 |
| Vulcan 5, Vulcan 7, Zeus2 7, Z7, Touch 7, Zeus3, Zeus2 9 (W9), Zeus3 9, H5000 | SP2S | SP2P | SP2S1 |
| Z8, Vulcan 9, Vulcan 12, Touch 8 | SP3S | SP3P | SP3S1 |
| Zeus2 12 (Z12), Touch 12, Zeus3 12, T12, Zeus2 Glass Helm ZM 16 |
SP4S | – | – |
| FURUNO | |||
| GP39, GP1670, GP1670F, GP1870, GP1870F, GP1871F, GP1971F, GP7800 | SP2S | SP2P | SP2S1 |
| GP170, GP170D, GS100, 1623, 1715 | SP3S | SP3P | SP3S1 |
| TZTL12F, MFD12 | SP4S | – | – |
| GARMIN | |||
| echoMAP 50 series, echoMAP CHIRP 52cv – 54cv, GPSMAP 722, 722xsv, 742, 742xsv, Striker 5, Striker 7, 441, 441S, 527, 547, 620, 640, 720, 721, 723, 723xsv, 740, 741, 741xsv, 743, 743xsv, 70s, 7407xsv, 7607xsv, echoMAP 70 & 90 series, echoMAP CHIRP 92sv – 95sv, 75sv, 74sv, 73sv 72sv, 74cv, 73cv, GPSMAP 922, 922xsv, 923, 923xsv, 942, 942xsv, 943, 943xsv, 952xs, 7408xsv, 7608xsv, 62cv, 64cv, 65cv, 72cv, 75cv, 93cv, Striker 9 |
SP2S | SP2P | SP2S1 |
| ECHOMAP Ultra 100 Series, 820, 840, 4008, 4208, 5008, 5208, 7410xsv, 7610xsv, 7412xsv, 7612xsv, GPSMAP 1022, 1022xsv, 1042xsv, 1223, 1223xsv, 1243, 1243xsv, 8612xsv, 8412xsv, 8610xsv, 8410xsv | SP3S | SP3P | SP3S1 |
| 1020, 1040, 8012, 8212, 7416xsv, 7616xsv, 8015, 8215, GPSMAP 1222, 1222xsv,1242xsv, 8616xsv, 8416xsv, 8617, 8417 | SP4S | – | – |
| HUMMINBIRD | |||
| Helix 5, 50 0 Series, 700 Series, Helix 7, 800 Series, 900 Series | SP2S | SP2P | SP2S1 |
| Helix 9, Helix 10, ONIX 8, ONIX 10 | SP3S | SP3P | SP3S1 |
| ION 10, ION 12, 1100 Series, Helix 12, Solix 12, Solix 12SI, Solix 15, Solix 15Si | SP4S | – | – |
| KODEN | |||
| KGP-913MkII, 913MkIID, KGP-915, KGP-925, KGP-920, KGC-222, CVS-126, CVR-010, KTN-70A | SP2S | SP2P | SP2S1 |
| CVS-126, CVR-010 | SP3S | SP3P | SP3S1 |
| CVS-128, CVS-128B, MRD-103, MRD-103A | SP4S | – | – |
| LOWRANCE | |||
| TROPHY-5M, HDS-5, HOOK5, 5X, HDS-7, HDS-7 Gen3, 7M, Elite 7, Elite-5Ti, Elite-7Ti, HDS-9, HDS-9 Gen3, Elite-9Ti, HOOK 7, 7x, HOOK 9, 9x, Elite 9, 9x |
SP2S | SP2P | SP2S1 |
| HDS-8, HDS-8M, HDS-10, HDS-10M, HDS-12 Gen2, HDS-12 Gen3, Elite-12Ti | SP3S | SP3P | SP3S1 |
| RAYMARINE | |||
| a65, a67, a68, a75, a77, a78, e7, e7D, Axiom 7 (+), eS75, eS77, eS78, c95, c97, e95, e97, Axiom 9 (+), Element 7HV, Element 9HV | SP2S | SP2P | SP2S1 |
| eS97, eS98, a95, a97, a98, gS95, Axiom Pro 9, Axiom 12 (+) | SP3S | SP3P | SP3S1 |
| a125, a127, a128, eS127, eS128, gS125, e165, gS165, Axiom Pro 12, Element 12HV | SP4S | – | – |
| SIMRAD | |||
| SVS-560CF, EC5E, EC5I, EC5FE, EC5FI, SNS 700 | SP2S | SP2P | SP2S1 |
| EC7E, EC7I, EC7FE, EC7FI | SP3S | SP3P | SP3S1 |
| EC11, SNS 1100 | SP4S | – | – |
| SITEX | |||
| SVS-560CF, EC5E, EC5I, EC5FE, EC5FI, SNS 700 | SP2S | SP2P | SP2S1 |
| EC7E, EC7I, EC7FE, EC7FI | SP3S | SP3P | SP3S1 |
| EC11, SNS 1100 | SP4S | – | – |
| STANDARD HORIZON | |||
| CP150, CP150C, CP155C, CP170C, CP175C, CPN700i, CP190i, CP390i, CPF190i, CPF180i, CPF300i | SP2S | SP2P | SP2S1 |
| CPN1010i, CP1000C | SP3S | SP3P | SP3S1 |
| CP590 | SP4S | – | – |
| ICOM | |||
| MA-500TR | SP2S | SP2P | SP2S1 |
| MXD5000 | SP4S | – | – |
Optional Accessory Pod
One of the unique abilities with this SPOD is the ability to add optional side pods (part #SP1BOX). Currently no other sailboat pod on the market has this feature. Depending on the pod box size you choose you are able to mount either one to four of these accessory pods. This gives the user lots of flexible solutions to optimize their setup. The SP1BOX is made of UV resistant white ABS plastic and held together with tamper resistant screws and sealed with a rubber gasket.
Dimensions
| Seaview Part Number | Dimensions |
| All Seaview Sail Pods | Download |
