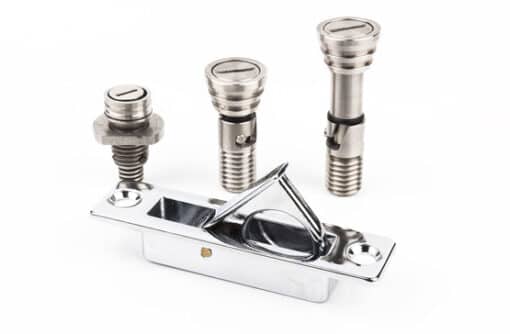

Gamme des Floor Anchors, vis de fixation de plancher

FLOOR ANCHORS : Floor Boards & Hinge Panel Locks

From 15.71

  • Made of 316L Stainless Steel and Brass, Floor Anchors will not corrode, discolor with age, or damage the wood surface.
  • Floor anchors safely hold 500 lbs. per unit – 1000 lb. breaking load.
  • Meets ISAF requirements for offshore boats.
  • Opening mechanism is a simple bayonet style, with ¼ turn lock and release that will not loosen with age.
  • Can be opened or closed by either a coin or a flat head screwdriver.
  • All components permanently attached – no loose pieces to drop in the bilge.
Clear

Description

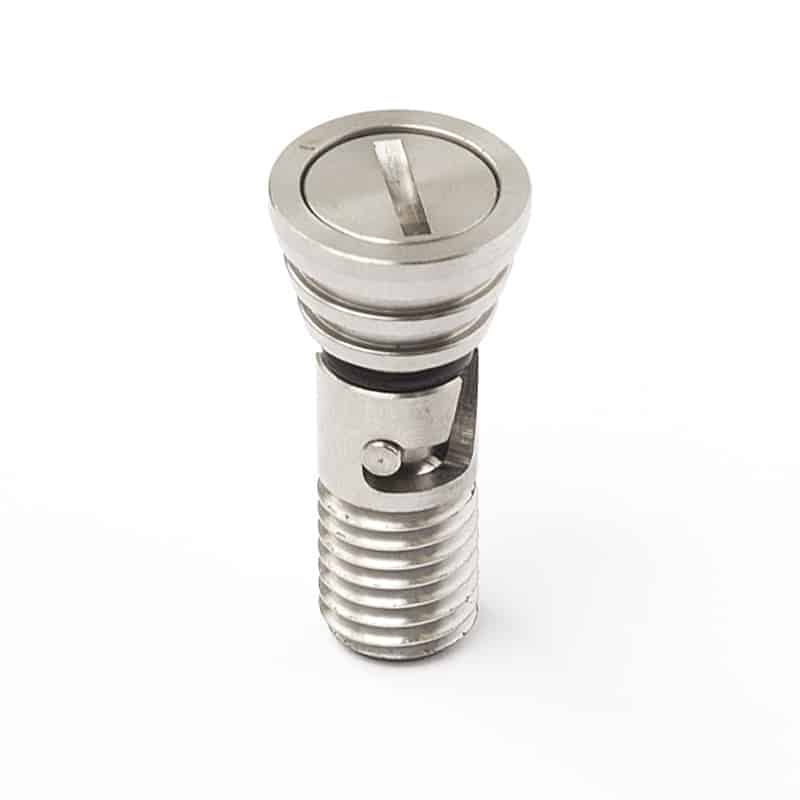

Floor Anchors are designed and engineered to secure floorboards or lock hinged panels. Available in either brass or 316L stainless steel, they will not corrode, discolor with age or damage the wood surface. These Floor Anchors meet ISAF requirements for offshore boats (category 2.03) and can safely hold 500lbs per unit. The opening mechanism is a simple bayonet style, with 1/4 turn lock and release that will not loosen with age. It can be opend or closed by either a coin or flat head screwdriver with all components permanently attached so you don’t have to worry about loose pieces dropping in the bilge. Suitable for 1/2″ to 3/4″ or 7/8″ to 1-1/4″ thick floorboards.

TIPS

Floor Anchors - 1/2"panel Floor Anchors -3/4"panel Floor Anchors -7/8" panel Floor Anchors -1" panel Floor Anchors-1-1-4-panel

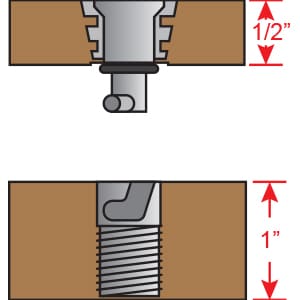

1/2″ Panel (12 mm)
With 1/2″ (12mm) panels the receiver will sit flush. A minimum of 1″ (25mm) is needed for the sole.

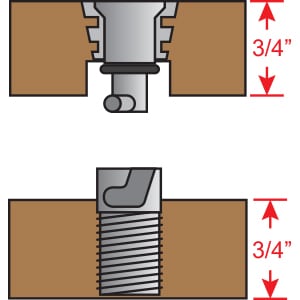

3/4″ Panel (19 mm)
With 3/4″ (19mm) panels you will have a small portion of the receiver above the sole. A minimum of 3/4″ (19mm) is needed for the sole.

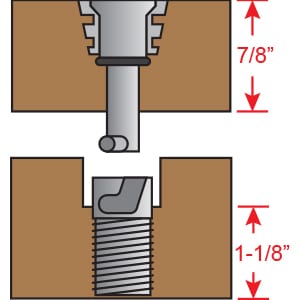

7/8″ Panel (22 mm)
With 7/8″ (22mm) panels you will have more of the receiver sitting below the sole, thus the sole will require counter boring. A minimum of 1-1/8″ (29mm) is needed for the sole.

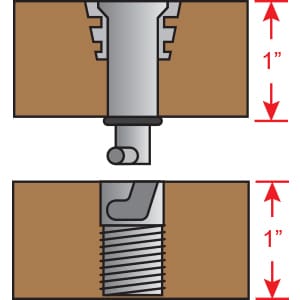

1″ Panel (25 mm)
With 1″ (25mm) panels teh receiver will sit flush. A minimum of 1″ (25mm) is needed for the sole.

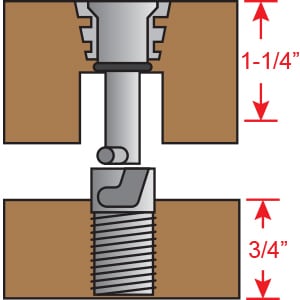

1-1/4″ Panel (32 mm)
With 1-1/4″ (32mm) panels you will have a small portion of the receiver above the sole. A minimum of 3/4″ (19mm) is needed for the sole.
